DESCRIPTION OF NEW
PRODUCT RANGE
TRIKE WINGS
The wings now called the Wizard 3 and the Streak 2
have been re-designed. The Wizard being the slower
of the two wing. Our design team have improved the
handling on both the Wizard 3 and Streak 2 over
previous models. The Streak now has a mylar PX
leading edge. Both wings have a cleaner sail with
enclosed battens. Tuning has been simplified by a
device in the leading edge tip that allows you to
lenghten or shorten the leading edge via an allen
key screw.
ULRTRALIGHTs /TRIKES

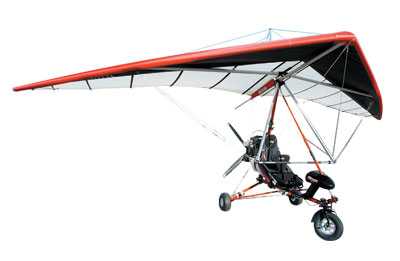

The Redback, A 503 Rotax DCI powered two
seater. This trike is already developing a cult
following amongst trikers both in Australia and the
USA. Redback pilots love it's simplicity and the
fact it is certified. The trike is finished in red
powder coating with a black instrument binacle, it
comes standard with a color coded Wizard wing and
makes for an attractive looking aircraft with the
famous Australian Redback spider logo. The Redback
offers pilots a certified and tested trike and
represents excellent value making it the most
affordable model in the Airborne range.
The Outback: is powered by the 582 DCI
Rotax, the Wizard wing is standard. The engine is
oil injected and comes standard with the pull start
C type gearbox. It can be optioned up with electric
start, tow system and silencer kits. Available also
is the Tundra undercarriage, this allows pilots to
access rougher landing terrain and is an exciting
feature for trike adventurers who enjoy beach
landings or slightly rougher terrain style
landings. The Outback is also the perfect trike to
add floats to, due to it's excellent climb rate and
light weight.. Currently Airborne is testing
Krucker floats on the Outback base.
The Outback S: As above but with the Streak
2 wing.
The Classic: Is a fully optioned Edge X. Is
standard with the 582, oil injected and electric
start, and Wizard wing. It is currently still the
most popular trike in the Airborne range. The
Classic can be optioned up to add silencer kits and
a tow system.
The Classic S: As above with the Streak 2
wing.
The XT 912: Powered by the Rotax 912, The
design team started from scratch on this one and
the trike has many CNC engineered parts included in
it's design. High quality rear and front gas shocks
are included . A wider and more comfortable seat
adding to pilot and passenger comfort. The mast
folds independant of the engine and uses a gas lift
strut to get the wing up, which can be done by one
person with ease. The XT is coupled with the Streak
2 wing, and carries 60 ltres plus of fuel.
|
Model
Configuration
|
Redback
|
Outback
|
Outback S
|
Classic
|
Classic S
|
|
X =
Included
|
104675
|
104857
|
104858
|
104859
|
104860
|
|
Rotax 582 DCDI Engine
|
|
X
|
X
|
X
|
X
|
|
Rotax 503 DCDI Engine
|
X
|
|
|
|
|
|
Oil Injection
|
|
X
|
X
|
X
|
X
|
|
C Type Gearbox (pull start)
|
X
|
X
|
X
|
|
|
|
E Type Gearbox Electric Start
|
|
|
|
X
|
X
|
|
Ceramic coated Exhaust
|
X
|
X
|
X
|
X
|
X
|
|
Brolga 4 Blade Propeller
|
X
|
X
|
X
|
X
|
X
|
|
Binacle (houses instruments on
Reback & Outback)
|
X
|
X
|
X
|
|
|
|
Basic Instrument Pack-Includes:
ASI-ALT-Hr Meter
|
X
|
X
|
X
|
X
|
X
|
|
Full dress Pack-Includes: Cockpit,
Spats, Softsides
|
|
|
|
X
|
X
|
|
Side Saddle Bags
|
X
|
X
|
X
|
|
|
|
Tweed Seat Cloth
|
|
X
|
X
|
X
|
X
|
|
Center Console
|
|
|
|
X
|
X
|
|
Tacho
|
X
|
X
|
X
|
X
|
X
|
|
Cylinder Head Temp
|
X
|
|
|
|
|
|
Dual Exhaust Gas Temp
|
|
X
|
X
|
X
|
X
|
|
Water Temp
|
|
X
|
X
|
X
|
X
|
|
Steering Dampner
|
|
X
|
X
|
X
|
X
|
|
Dual Steering
|
X
|
X
|
X
|
X
|
X
|
|
Streak 2 Wing
|
|
|
X
|
|
X
|
|
Wizard 3 Wing
|
X
|
X
|
|
X
|
|
|
OPTIONS:
|
Part
No's
|
Redback
|
Outback
|
Outback S
|
Classic
|
Classic S
|
|
(O = Available) ( INCL =
Included as standard)
|
|
Electric Start - E Type Gearbox
|
103002
|
N/A
|
O
|
O
|
INCL
|
INCL
|
|
Un-install Oil Injection (take-off
oil injection)
|
NSTK
|
N/A
|
O
|
O
|
O
|
O
|
|
After Silencer with ceramic
coating
|
102259
|
N/A
|
O
|
O
|
O
|
O
|
|
Intake Silencer
|
103009
|
N/A
|
O
|
O
|
O
|
O
|
|
Training Bars to suit Wizard or
Streak
|
102477
|
O
|
O
|
O
|
O
|
O
|
|
Tow System
|
103028
|
O
|
O
|
O
|
O
|
O
|
|
Wheel Spats kit (not available for
Tundra options)
|
103014
|
O
|
O
|
O
|
INCL
|
INCL
|
|
Steering Dampner kit
|
103025
|
O
|
INCL
|
INCL
|
INCL
|
INCL
|
|
Tundra Option - Available for
Outback Only
|
NSTK
|
N/A
|
O
|
O
|
N/A
|
N/A
|
|
Tundra Kit (Does not fit
Classics)
|
NSTK
|
O
|
O
|
O
|
N/A
|
N/A
|
CLASSIC Option
up to top of the Range.

Dual
Seat, Certified, Affordable.
Gives
crate dimensions and weights. Trailer
drawing.
